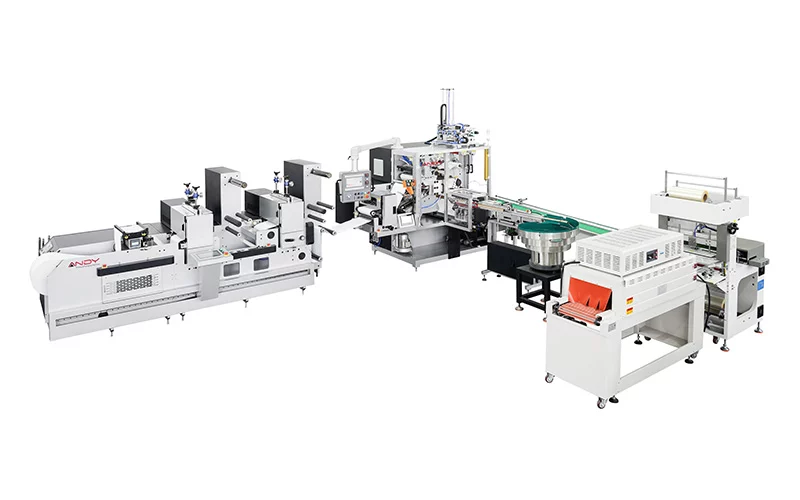

This self-adhesive label fully automatic packaging production line includes double stations die cutting machine, high speed automatic turret rewinder and shrink packaging machine, which greatly enhanced production efficiency, reduced labor costs, and enabled die-cutting, rewinding and packaging to be completed in one process.
-100% Full auto paper core loading system.
-10sec Quick-change spindles support 1inch to 3inch.
-300% production higher when connect to none-stop unwinder.
-Automatic slitting unit, inkjet printing unit, labeling syste, independent unwinder and so on are available.
| MAIN TECHNICAL PARAMETERS | ||
| Name | Technical specifications | Unit |
| Model | ||
| Max. Speed | 100 | m/min |
| Max. Web Width | 330 | mm |
| Max. Unwinding Diameter | 1200 | mm |
| Max. Rewinding Diameter | 350 | mm |
| Min. Rewinding Width | 40 | mm |
| Power Supply | 3PH+N+PE | |
| Total Power | 36 | KW |
| Packaging Speed | 23 | pcs/min |
| Packing Film | PVC POF | |
| Packaging Range: dia.* width | Ø(40-165)* W(50-350)MM | |
| Air Source | 0.8 | Mpa |
