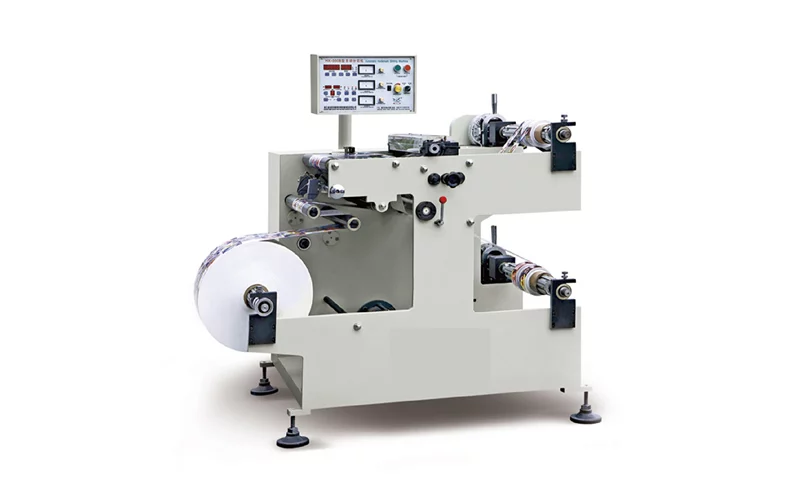

The AS-550 automatic slitting machine is the auxiliary product of the automatic die cutting machine. This machine is suitable for slitting narrow pieces of paper. It has functions of meter counter, number counter, unwinding and rewinding are controlled by the magnetic brake and cluth, and the unwinding is controlled by two photoelectric eyes, the structure of the complete machine is compact, with high speed, high efficiency, easy and steady operation.
| MAIN TECHNICAL PARAMETERS： | |||
| Model | AS-550 | ||
| Slitting Speed | 100m/min | ||
| Max. Web Width | 550mm | ||
| Max. Unwinding Diameter | 700mm | ||
| Max. Rewinding Diameter | 600mm | ||
| Precision of Slitting | ±0.1mm | ||
| Power Of The Host Machine | 3.0KW | ||
| Dimensions (L×W×H) | 1376×953×1490mm | ||
| Machine Weight | About 800KGS | ||
